Product description

For A Better Inspection Scope

◆ Model:R270、R2730、R2770

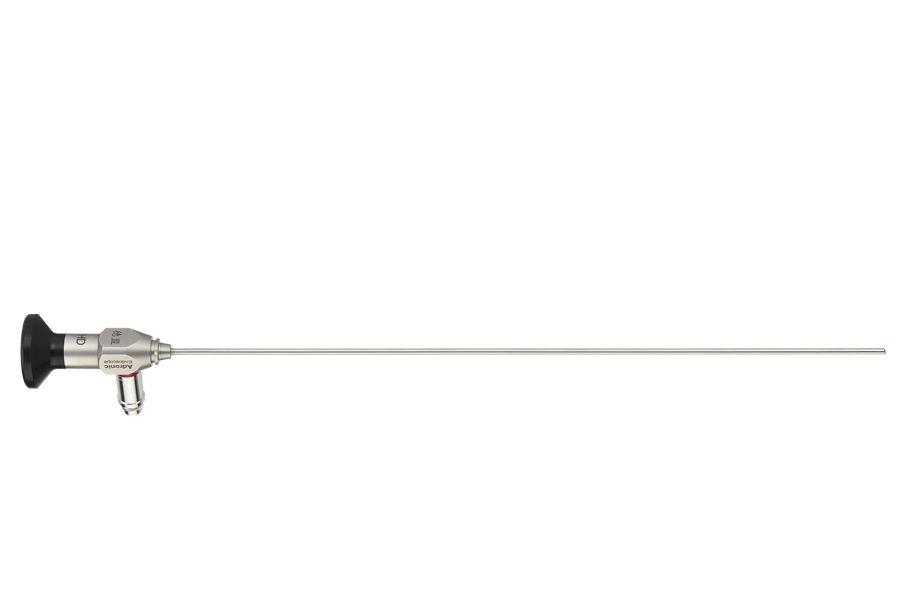

OD2.7mm Rigid Scope
Adronic Endoscope provide improves visibility and provides four times more information than conventional Full HD imaging system, closer distance and realizes rich color reproduction and provides suitable colors for each clinical discipline. Additional, enables easier determination of tissue boundaries. More importation, it can improve visibility and operability with a large screen.

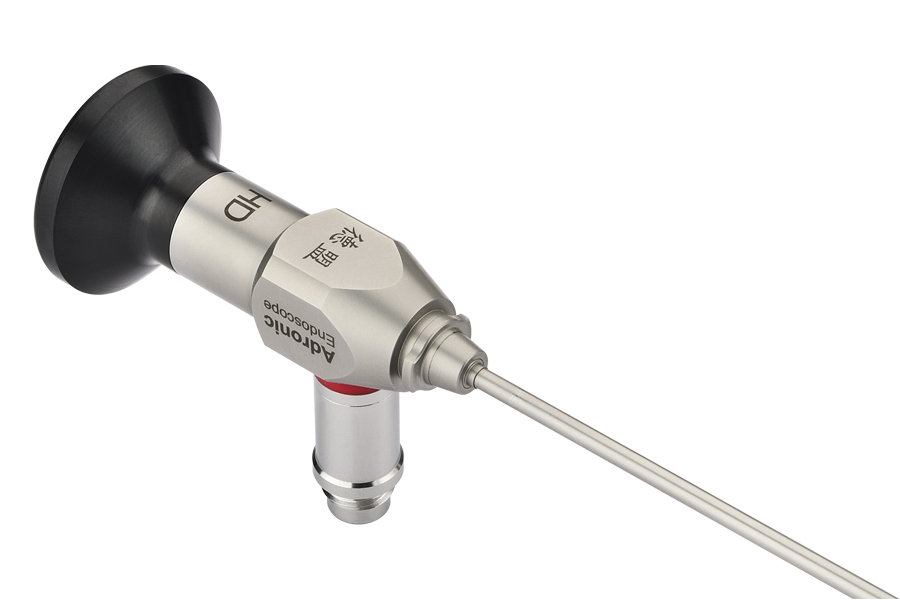

3 Standard Light Post
Adronic Endoscope is able to support other light source system, it includes 3 standard light post adapter same as ACMI, WOLF, STORZ and OLYMPUS. The first (ACMI) light post is permanently attached to endoscope and could not be removed. The second (WOLF) light post attaches to the first one. The end (STORZ/OLYMPUS) light post slides over the second one.

Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Various specifications: soft, rigid, long and short all can be customized.
   All materials meet the requirements of medical grade and RoHS.
◆ Adronic Endoscope applied to Ears, Nose, and Throat / Thoracic Surgery /
   Gynecology:Nasoscope / Thoracoscopy / Laparoscopic

Direction of View

Application System
M55
Item Specification
Outer Diameter OD2.7mm
Working Length 80-302mm
Resolution -
Light material Light source fiber
Eyepiece Size 32mm Universal eyepiece
Direction of View 0° 30° 70°
Field of View 90°
Depth of View 3mm-50mm
Tube material 304 stainless
Waterproof Comply IP67
OD2.7mm Rigid Scope
