Model:V70-HDNBI

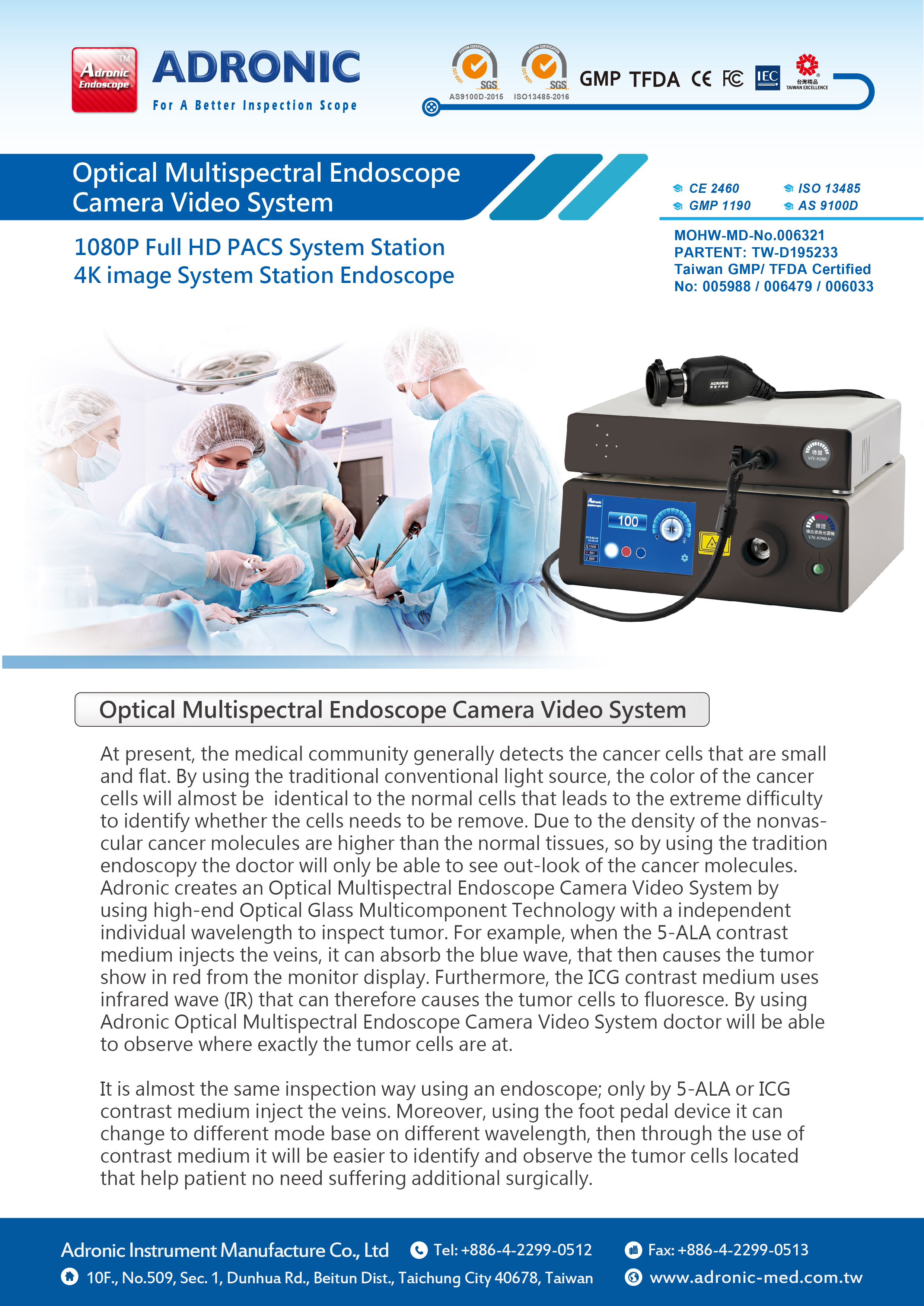

At present, the medical community generally detect the cancer cells that are small and flat. By using the traditional conventional light source, the color of the cancer cells will almost be  identical to the normal cells that leads to the extreme difficulty to identify whether the cells needs to be remove. Due to the density of the neovascular cancer molecules are higher than the normal tissues, so by using the tradition endoscopy the doctor will only be able to see out-look of the cancer molecules. Adronic creates an Optical Multispectral Endoscope Camera Video System by using high-end Optical Glass Multicomponent Technology with a independent individual wavelength to inspect tumor. For example, when the 5-ALA contrast medium inject the veins, it can absorb the blue wave, that then causes the tumor show in red from the monitor display. Furthermore, the ICG contrast medium uses infrared wave (IR) that can therefore causes the tumor cells to fluoresce. By using Adronic Optical Multispectral Endoscope Camera Video System doctor will be able to obesere where exactly the tumor cells are at.

The inspection of the Optical Multispectral Endoscope Camera Video System are identical
with the traditional endoscopy, however, by using the Adronic Optical Multispectral Endoscope Camera Video System it provided access to identified the tissue that cannot be easily see. By using the foot pedal device it can change to different mode base on different wavelength, then through the use of contrast medium it will be easier to identify and obser the tumor cells. It can effectively decrease the risks of damaging the normal tissues and the veins inside human body. In addition, it provide the best situation in resecting the sick cells in the save zone that helps the surgeons to make the right move in the operation.

Adronic Optical Multispectral Endoscope Camera Video System includes 4K rigid endoscope, HD endoscope camera with CCU, compounded wavelength optical glass light source and a 4K HD PACS video image system station. 4K rigid endoscope provide crystal image that can identify the difference tumors in the veins that helps the doctor to identify the exact location of the sick cells. 4K HD PACS image capture station helps doctor transfer all images data to main server for necessary records. The unique three independent optical glass spectral design white, blue and IR through foot pedal device which offers a fast and conveniences way that helps the doctor to knows where exactly the tumor cell are located.

Features
◆ 0.8mm Medical flexible Fiber Scope
◆ Ultra HD 4K image out put
◆ Full HD camera 1080P/60fps resolution
◆ 100% design and made in Taiwan
◆ Unique three independent optical glass spectral white,
     blue and IR individual wavelength design.
◆ 100% after sales/repairing services
◆ 7 inch touch panel
◆ Foot pedal allow user to switch White or RED or UV light output.
◆ Advance touch panel allow user to switch White or RED or UV light output
◆ Allow to identify tumor located by 5-ALA or ICG contrast medium inject the veins,
◆ Fast and easy to adjust different light wavelength as well as brightness output level.

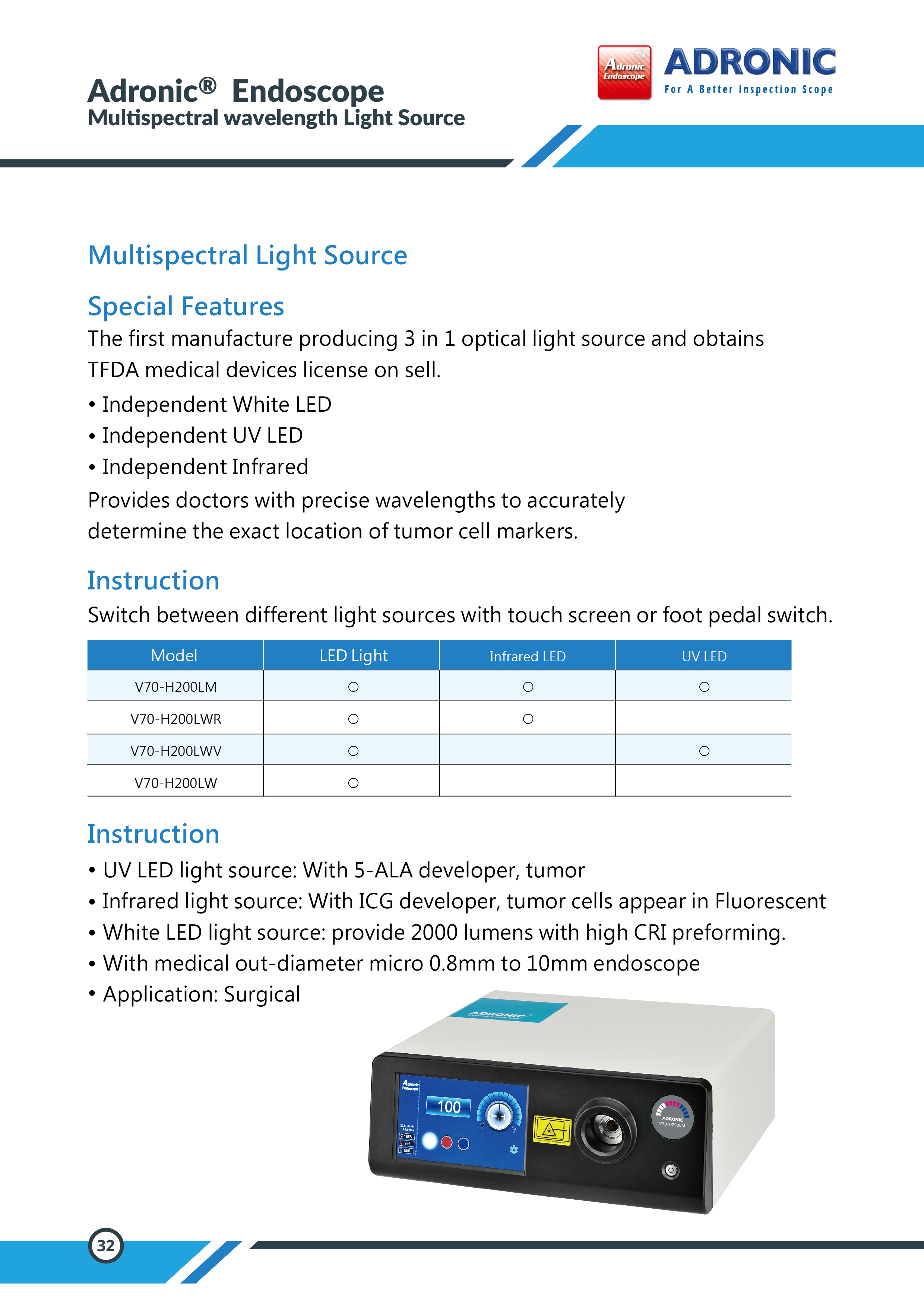

◆ Light Source Model: V70-H200L

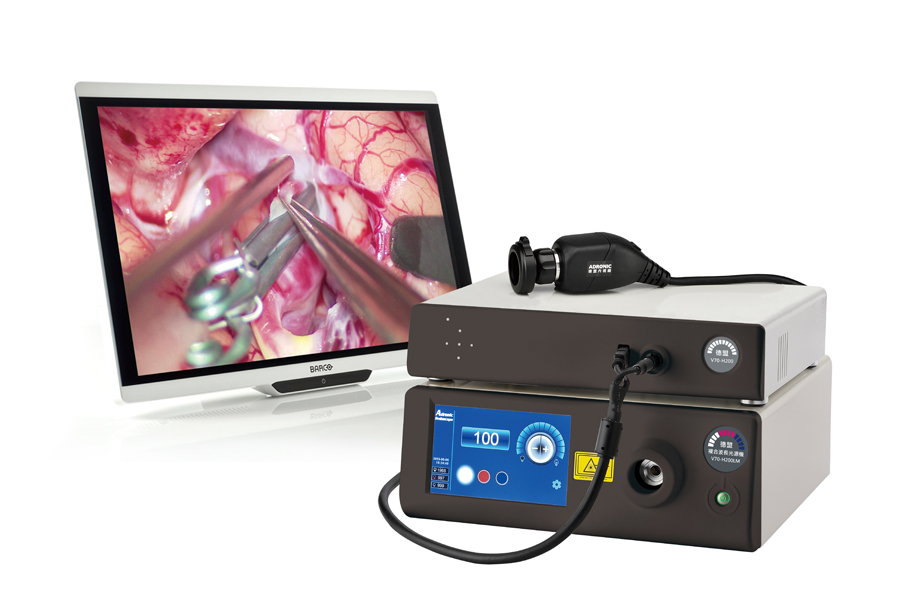

Adronic 4K HD Station
Multispectral light scattering endoscopic Fluorescent imaging of  Blood vessel and Neurosurgery Tumor.
The unique three independent optical glass spectral design white, blue and IR through foot pedal device which offers a fast and conveniences way that helps the doctor to knows where exactly the tumor cell are located by 5-ALA or ICG contrast medium.
V70-H200LWR When the ICG contrast medium uses infrared wave (IR) that can therefore causes the tumor cells to fluoresce. Doctor will be able to observe where exactly the tumor cells are at.
V70-H200LWV When the 5-ALA contrast medium inject the veins, it can absorb the blue wave, that then causes the tumor show in red from the monitor display. Doctor will be able to observe where exactly the tumor cells are at.
V70-H200LW Ultra-powerful white light source, The image displayed by the endoscope with this light source is excellent. Suitable for Neurological Surgery.


V70-H200L Light source	White light	IR Light	UV light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○


Features
◆ Full HD 1920 x 1080P image quality.
◆ HDTV high-definition video modes characterized by 1,920 pixels displayed across the
     screen horizontally and 1,080 pixels down the screen vertically
◆ 1080p60 format, a whole new range of studio equipment including cameras, storage
     and editing systems
◆ Support 14mm-35mm TV camera
◆ Adronic Endoscope Camera designed by build in together LED light source provide
     friendly and compact for user with mist conveniences purpose.
◆ Prorated LED lifetime upto 30,000 hours.

Application
Laparoscopic / Cystoscope / Urethoscopy / Arthroscopy / Hysteroscope

Specifications

Light source	V70-H200L
Camera Effective Pixels	1920×1080P
Minimum illumination	0.6lux (AGC ON) F1.2
Lens Mount	C-Mount
Bit depths	RGB24bit
Sensor Size	Sony CCD 1/2.8〞
User profile	0-7
Light intensity	>2,000,000LX
Life time	>30,000hr
LED Color temperature	6000K
Lumen	2195 Lm
Per second photo fram	60 fps
Cell Size(HXV,μm)	2.8um x 2.8um
White balance	Auot and Manual
Output	HDMI/VGA
Low Carbon	Yes

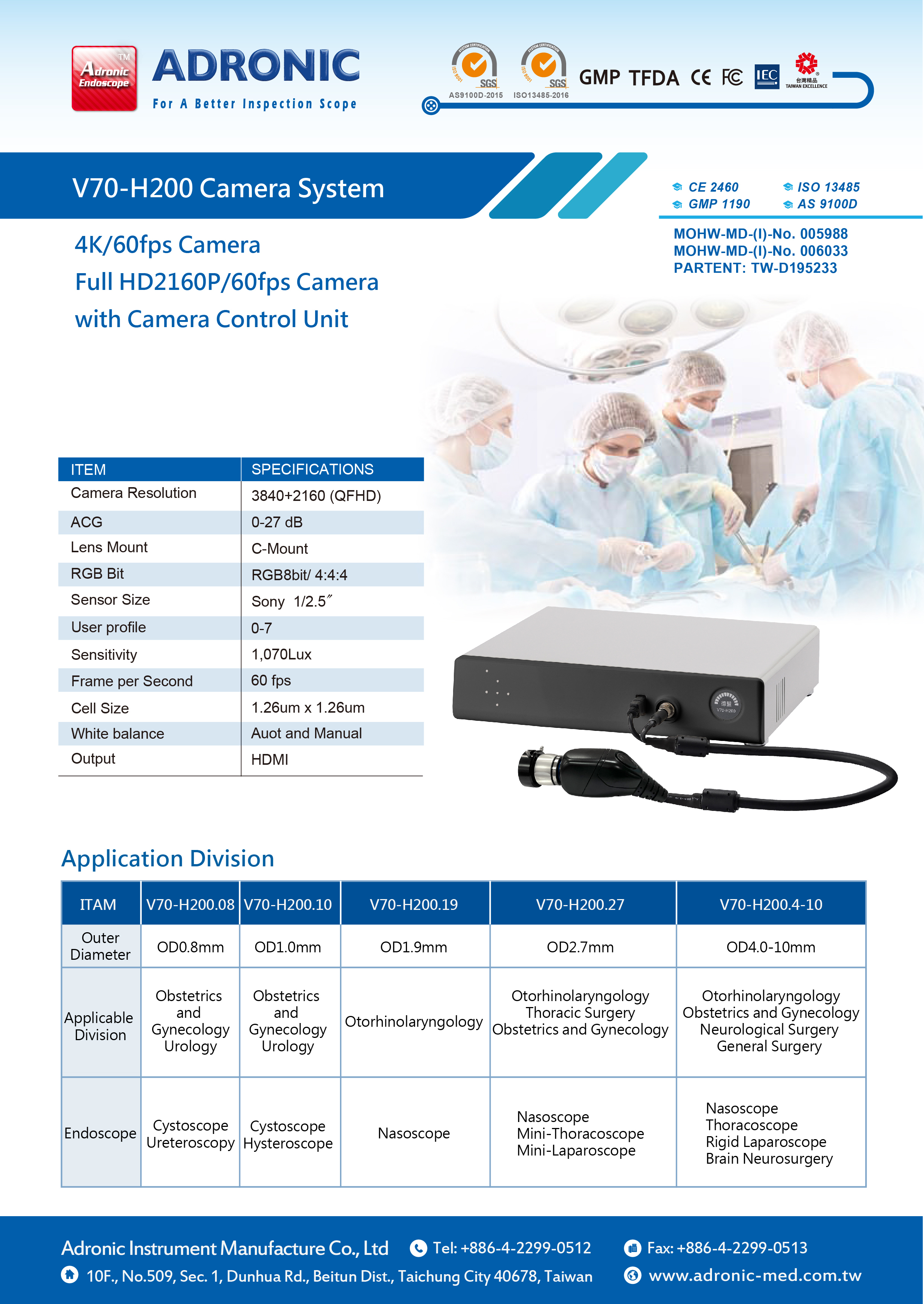

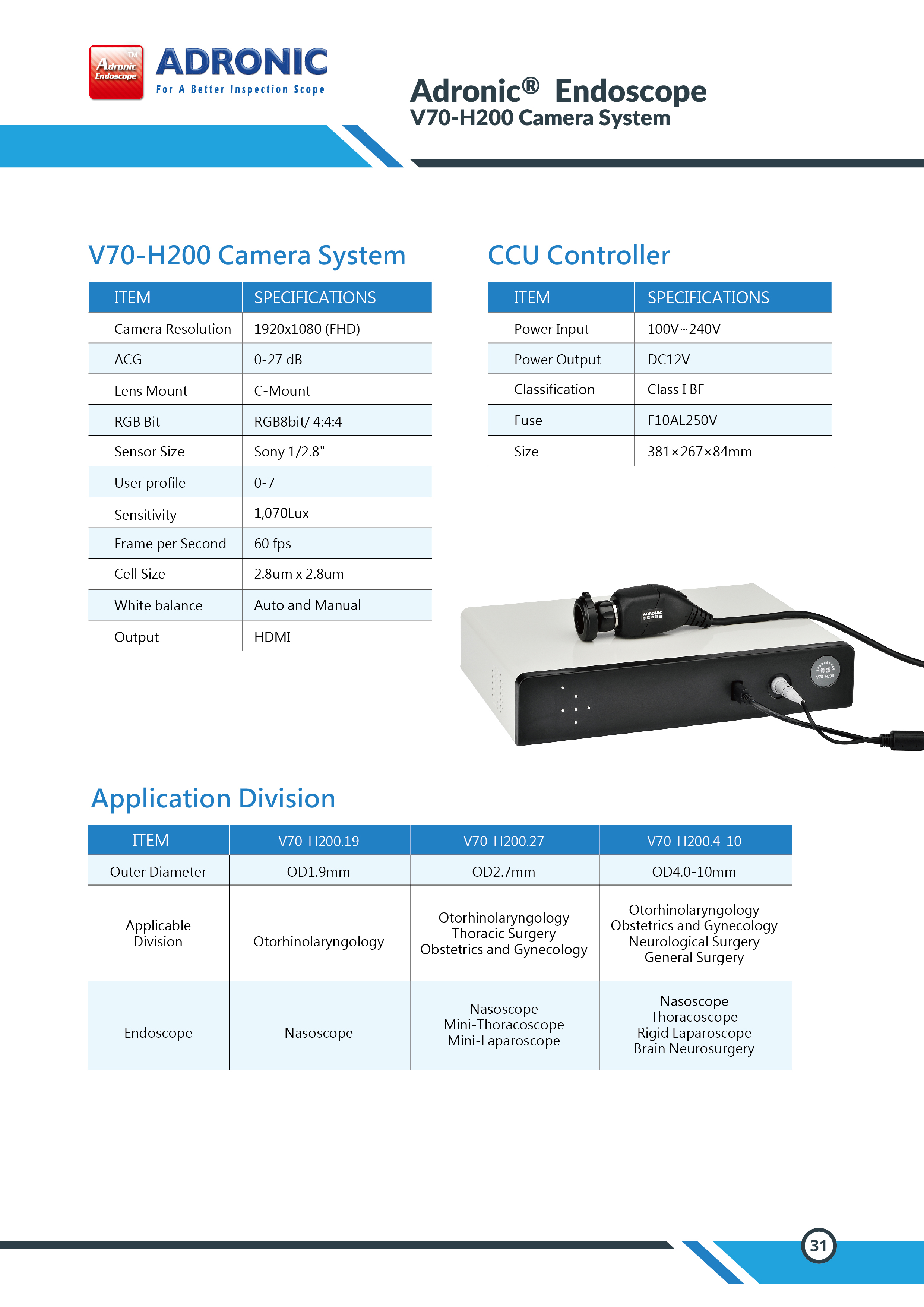

◆ Model: V70-H200
4K/60fps Camera
Full HD2160P/60fps Camera
with Camera Control Unit

Specifications

Camera	V70-H200
Resolution	3840+2160 (QFHD)
ACG	0-27 dB
Lens Mount	C-Mount
RGB Bit	RGB8bit/ 4:4:4
Sensor Size	Sony  1/2.5〞
User profile	0-7
Sensitivity	1,070Lux
Frame per Second	60 fps
Cell Size	1.26um x 1.26um
White balance	Auot and Manual
Output	HDMI

 Application Division

Model	Outer Diameter	Applicable Division	Endoscope
V70-H200.08	OD0.8mm	Gynecology / Urology Division	Cystoscope / Urethoscopy
V70-H200.10	OD1.0mm	Gynecology / Urology Division	Cystoscope / Urethoscopy
V70-H200.1.9	OD1.9mm	Ears, Nose, and Throat(Pediatrics)	Nasoscope
V70-H200.2.7	OD2.7mm	Ears, Nose, and Throat / Thoracic Surgery / Gynecology	Nasoscope / Thoracoscopy / Laparoscopic
V70-H200.4-10	OD4.0-10mm	Ears, Nose, and Throat / Gynecology Neurological Surgery / General Surgery	Nasoscope(4mm) / Laparoscopic(10mm) / Hard laparoscopic(10mm) / Brain neurosurgery

◆ Light Source Model:
V70-H200LM / V70-H200LWR / V70-H200LWV
V70-H200LW / V70-H200LR / V70-H200LV


V70-H200L Light source	White light	IR Light	UV light
V70-H200LM	○	○	○
V70-H200LWR	○	○
V70-H200LWV	○		○
V70-H200LW	○
V70-H200LR		○
V70-H200LV			○



Light source	V70-H200L
Camera Effective Pixels	1920×1080P
Minimum illumination	0.6lux (AGC ON) F1.2
Lens Mount	C-Mount
Bit depths	RGB24bit
Sensor Size	Sony CCD 1/2.8〞
User profile	0-7
Light intensity	>2,000,000LX
Life time	>30,000hr
LED Color temperature	6000K
Lumen	2195 Lm
Per second photo fram	60 fps
Cell Size(HXV,μm)	2.8um x 2.8um
White balance	Auot and Manual
Output	HDMI/VGA
Low Carbon	Yes

◆ Model: V70-H200
4K/60fps Camera
Full HD2160P/60fps Camera
with Camera Control Unit



Camera	V70-H200
Resolution	3840+2160 (QFHD)
ACG	0-27 dB
Lens Mount	C-Mount
RGB Bit	RGB8bit/ 4:4:4
Sensor Size	Sony  1/2.5〞
User profile	0-7
Sensitivity	1,070Lux
Frame per Second	60 fps
Cell Size	1.26um x 1.26um
White balance	Auot and Manual
Output	HDMI



Model	Outer Diameter	Applicable Division	Endoscope
V70-H200.08	OD0.8mm	Gynecology / Urology Division	Cystoscope / Urethoscopy
V70-H200.10	OD1.0mm	Gynecology / Urology Division	Cystoscope / Urethoscopy
V70-H200.1.9	OD1.9mm	Ears, Nose, and Throat(Pediatrics)	Nasoscope
V70-H200.2.7	OD2.7mm	Ears, Nose, and Throat / Thoracic Surgery / Gynecology	Nasoscope / Thoracoscopy / Laparoscopic
V70-H200.4-10	OD4.0-10mm	Ears, Nose, and Throat / Gynecology Neurological Surgery / General Surgery	Nasoscope(4mm) / Laparoscopic(10mm) / Hard laparoscopic(10mm) / Brain neurosurgery
