Product description

For A Better Inspection Scope

◆ Model:R1000-4K、R10030-4K、R10070-4K

OD10mm 4K Rigid Scope(can be steam sterilized)
Adronic 4K endoscope provide improves visibility and provides four times more information than conventional Full HD imaging system, closer distance and realizes rich color reproduction and provides suitable colors for each clinical discipline. Additional, enables easier determination of tissue boundaries. More importation, it can improve visibility and operability with a large screen.
Adronic fiber optical rigid scope features precision lens, it enables to deliver clear and correct images with superior quality. We also provide a wide range of diameter and length options to meet various inspection purpose of ENT and VET diagnosis.

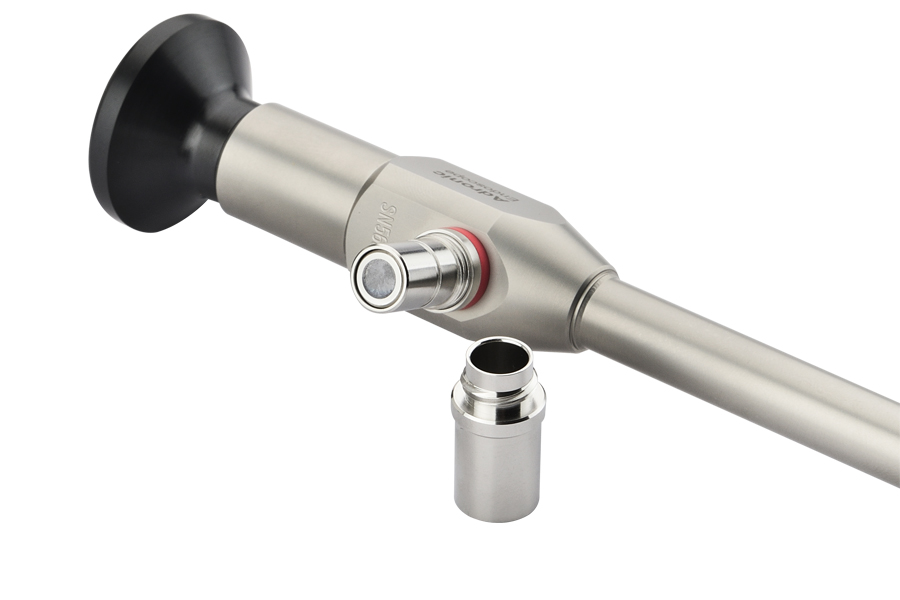

3 Standard Light Post
Adronic 4K endoscope is able to support other light source system, it includes 3 standard light post adapter same as ACMI, WOLF, STORZ and OLYMPUS. The first (ACMI) light post is permanently attached to endoscope and could not be removed. The second (WOLF) light post attaches to the first one. The end (STORZ/OLYMPUS) light post slides over the second one.

Feature
◆ Precision testing equipment with the most sophisticated technology and optimal system.
◆ Wide applications in medical treatment, industry detection, military and police.
◆ Various specifications: soft, rigid, long and short all can be customized.
   All materials meet the requirements of medical grade and RoHS.
◆ Adronic 4K endoscope applied to Ears, Nose, and Throat / Gynecology /
   General Surgery / Neurological Surgery:Nasoscope(4mm) / Laparoscopic(10mm) /
   Brain neurosurgery

Direction of View

​Application System
Medical Image PACS System
Item Specification
Outer Diameter OD10mm
Working Length 230-330mm
Resolution 4K
Light material Light source fiber
Eyepiece Size 32mm Universal eyepiece
Direction of View 0° 30° 70°
Field of View 90°
Depth of View 3mm-50mm
Tube material 304 stainless
Waterproof Comply IP67

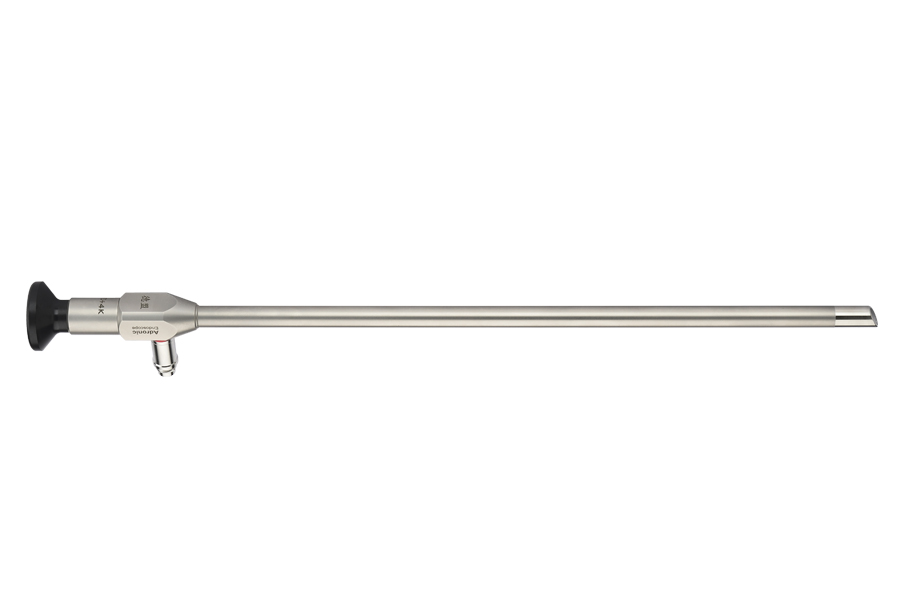

OD10mm 4K Rigid Scope
